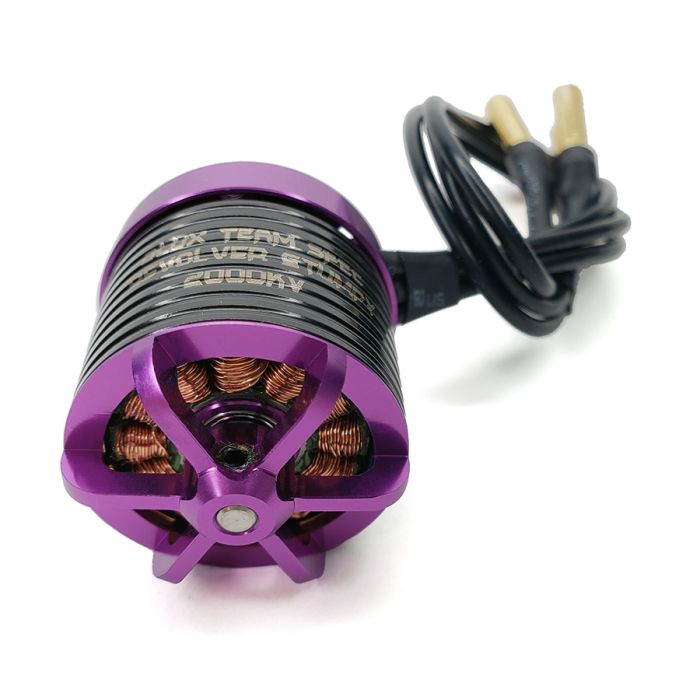

Dlux Team Spec Revolver Stumpy 2000kv

Magnetics and housing designed by Holmes Hobbies for smooth startup and high torque with minimum weight and size.
Recommended ESC: Crawlmaster v3

• TEAM SPEC upgraded
• sleek Purple anodizing
• Titanium shaft for lighter weight
• 0.15mm silicon steel laminations for higher efficiency
• Gold plated n48 magnets for higher drag and torque
• Heavy back iron for higher drag brake and torque
• 150mm wires and 4mm bullet plugs
• 75 grams total
• 3.175mm shaft for pinion (17mm protruding)
• 33.6mm length from mounting face to the end of the can
• 30mm mounting face diameter
• "540 standard" m3 mounting bolt on 25mm circle,
• "280 and 380 standard" m2.5 mounting bolt on 16, 14mm circles
• 4S LiPo maximum input
• 14 pole 12 slot
• 2000kv
